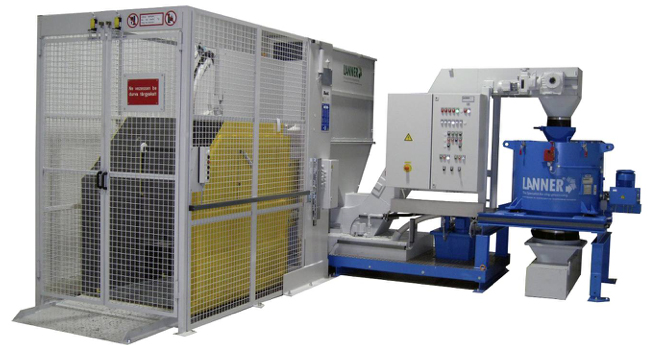

System Type: Fully Automated Processing

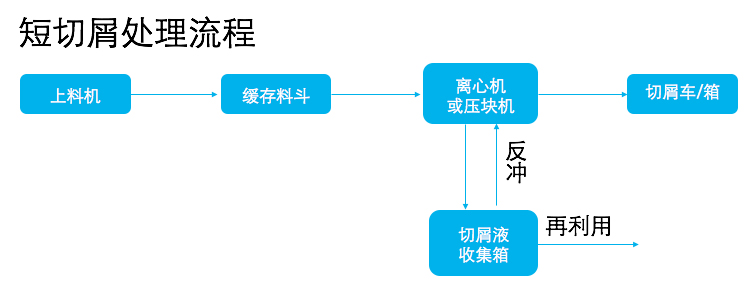

System Components: Feeder, Buffer Hopper, Scraper Conveyor, Centrifuge, Waste Oil Collection Tank, Control System
Chip Material: Short Gray Cast Iron Chips Containing Cutting Oil
Processing Capacity: 750 kg/h, 3 shifts/day
Feeding Method: Automatic Lifting, Tilting, and Dumping via Chip Collection Cart
Hopper Capacity: ~1m³
Drying Rate: Liquid Residue <2%
Centrifuge: LANNER DS40 (Germany)
Installation Date: December 2009

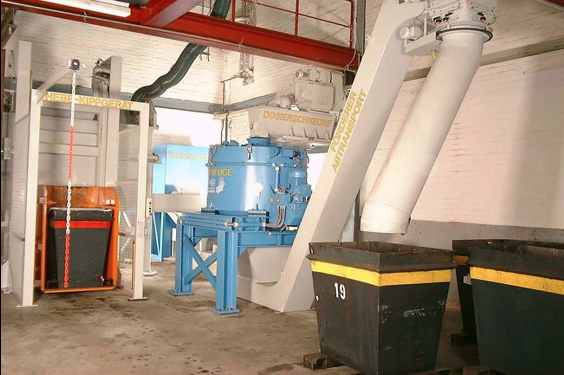

Typical Case: Oily Sludge
System Type: Fully Automated Processing
System Components: Feeder, Buffer Hopper, Chain Conveyor, Centrifuge, Waste Oil Collection Tank, Control System

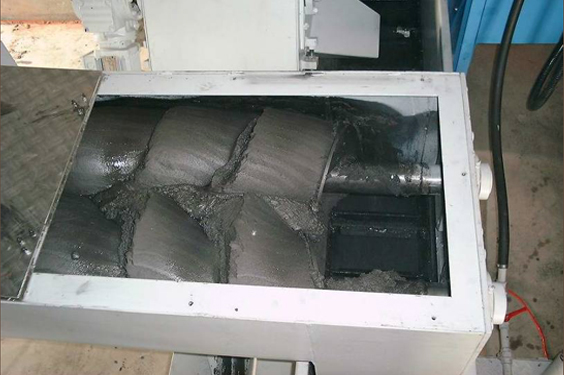

Chip Material: Oily Sludge from Gray Cast Iron with Cutting Oil
Processing Capacity: 10,000 kg/h, 2 shifts/day
Feeding Method: Automatic Lifting, Tilting, and Dumping via Chip Collection Cart
Hopper Capacity: ~4m³
Discharge Method: Rotary Chute, Discharging into Three Collection Bins
Centrifuge: LANNER DS60 (Germany)
Installation Date: April 2010
